Pastylka serii DS1921 lub DS1922 jest samowystarczalnym systemem pomiarowym firmy DALLAS-MAXIM, który mierzy temperaturę i zapisuje wyniki pomiarów w nieulotnej pamięci w określonych interwałach czasowych (definiowanych przez użytkownika). Przedziały czasowe mogą być ustalone od 1min do 255min. System zapisuje też jeśli temperatura przekroczy zadane progi. Dostęp do pastylki przez interfejs 1-wire. Układ oczywiście współpracuje z darmowym oprogramowaniem OneWireViewer poprzez wszystkie interfejsy 1-Wire i czytniki iButton z naszej oferty.

Uwaga: Rejestratory są odporne na zachlapania (bryzoodporne) jednak nie są odporne na długotrwałe działanie wilgoci (pod jej wpływem uszkadza się zazwyczaj wewnętrzna bateria). W przypadku takiego zagrożenia wskazane jest umieścić rejestrator w szczelnym pojemniku lub przynajmniej w szczelnym woreczku strunowym.
W naszej ofercie posiadamy dedykowane kapsulki ochronne do tego typu pastylek.

Nota aplikacyjna: AN3809, Exporting DS192x Logger Data from the OneWireViewer into Excel (w j. angielskim)

Broszura informacyjna (w. j. angielskim)

Oprogramowanie, sterowniki, dodatkowe informacje

Przykładowe widoki darmowego programu OneWireViewer, współpracującego z rejestratorami temperatury DS1921G

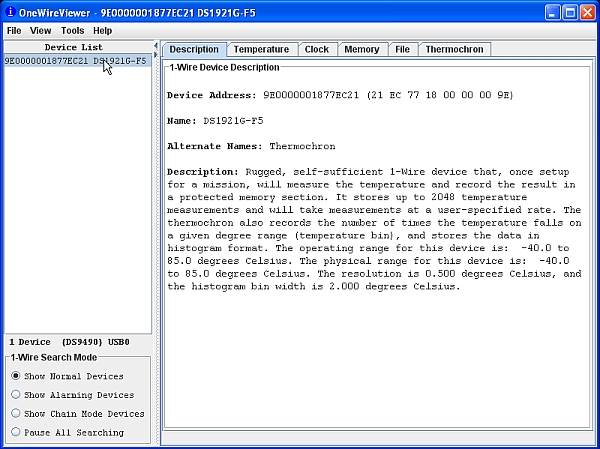

Okno programu po otworzeniu (z lewej strony lista wykrytych układów, w naszym przypadku jeden układ DS1921)

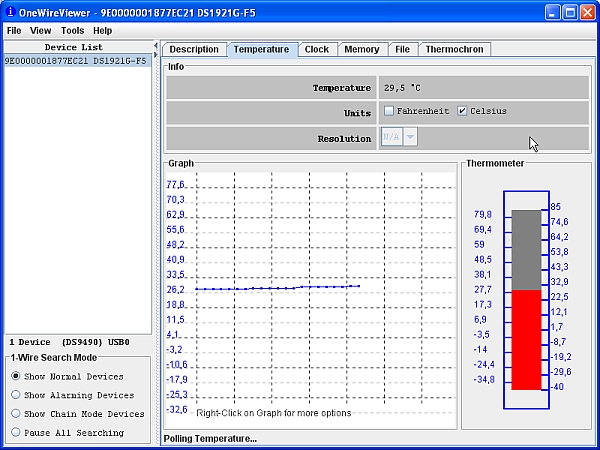

Zakładka Temperature (na bieżąco możemy obserwowac zmiany temperatury)

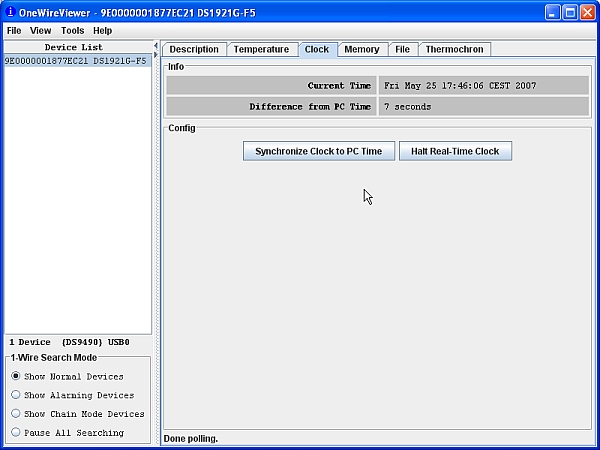

Zakładka Clock (umożliwia ustawienie czasu i daty w rejestrzatorze - poprzez synchronizację z zegarem komputera PC)

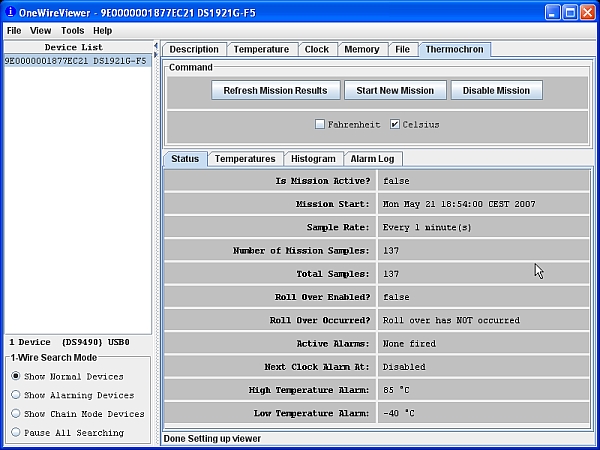

Zakładka Thermochron - najważniejsza dla naszego układu (po kolei podzakładki: Status, Temperatures)

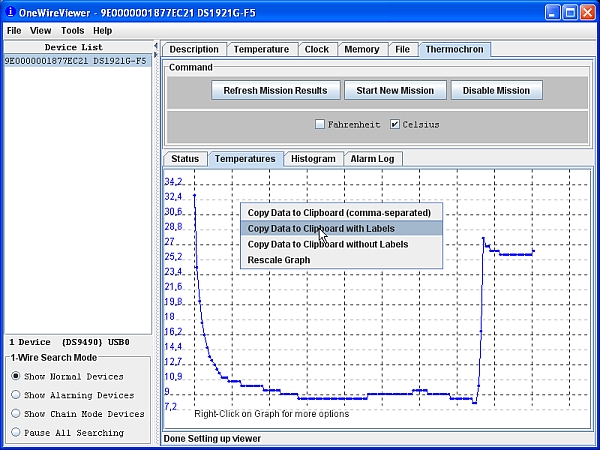

Uwaga: Zapisu danych do schowka (można następnie je wkleić do dowolnego edytora tekstowego lub arkusza) dokonuje się poprzez ustawienie kursora myszy na wykresie i wciśnięcie prawego przycisku myszy.

DS1921G-F5 (standardowy, pomiar od -30°C do +70°C)

Właściwości:

• cyfrowy rejestrator temperatury z rozdzielczością 0,5°C
• dokladność +/-1°C w zakresie -30°C do +70°C
• wbudowany zegar czasu rzeczywistego
• automatyczne wybudzanie na czas pomiaru
• 2048 kolejnych wyników pomiarowych w nieulotnej pamięci
• programowalne progi alarmowe
• zapis 24 okresów kiedy temperatura nie mieściła się w zadanych progach
• 512 bajtów pamięci nieulotnej ogólnego przeznaczenie - zapis i odczyt
• komunikacja 1-wire
• unikalny 64-bitowy numer seryjny

Dokumentacja rejestratora DS1921G (w j. angielskim)

Szczegółowe informacje na stronie producenta >>

DS1921H-F5 (wysoka rozdzielczość, pomiar od +15°C do +46°C)
DS1921Z-F5 (wysoka rozdzielczość, pomiar od -5°C do +26°C)

Opis

The DS1921H/Z Thermochron® iButtons® are rugged, self-sufficient systems that measure temperature and record the result in a protected memory section. The recording is done at a user-defined rate, both as a direct storage of temperature values as well as in the form of a histogram. Up to 2048 temperature values taken at equidistant intervals ranging from 1 to 255 minutes can be stored. The histogram provides 64 data bins with a resolution of 0.5°C. If the temperature leaves a user-programmable range, the DS1921H/Z will also record when this happened, for how long the temperature stayed outside the permitted range, and if the temperature was too high or too low. Additional 512 bytes of general-purpose battery-backed SRAM allow storing information pertaining to the object to which the DS1921H/Z is associated. Data is transferred serially via the 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS1921H/Z is factory-lasered with a guaranteed unique electrically readable 64-bit registration number that allows for absolute traceability. The durable stainless steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1921H/Z to be mounted on almost any object, including containers, pallets, and bags.

Właściwości:

• Digital thermometer measures temperature 1/8°C increments with ±1°C accuracy
• Built-in real-time clock (RTC) and timer has accuracy of ±2 minutes per month from 0°C to 45°C
• Water resistant or waterproof if placed inside DS9107 iButton capsule (Exceeds Water Resistant 3 ATM requirements)
• Automatically wakes up and measures temperature at user-programmable intervals from 1 to 255 minutes
• Logs consecutive temperature measurements in 2KB of datalog memory
• Records a long-term temperature histogram with 1/2°C resolution
• Programmable temperature-high and temperature-low alarm trip points
• Records up to 24 time stamps and durations when temperature leaves the range specified by the trip points
• 512 bytes of general-purpose battery-backed SRAM
• Communicates to host with a single digital signal at 15.4kbits or 125kbits per second using 1-Wire protocol
• Fixed range: H: +15°C to +46°C; Z: -5°C to +26°C

Dokumentacja rejestratorów DS1921H/DS1921Z (w j. angielskim)

Szczegółowe informacje na stronie producenta >>

DS1922E-F5 (wysoka pojemność, pomiar od +15°C do +140°C)

Opis

The DS1922E temperature logger iButton is a rugged, self-sufficient system that measures temperature and records the result in a protected memory section. The recording is done at a user-defined rate. A total of 8192 8-bit readings or 4096 16-bit readings, taken at equidistant intervals ranging from 1s to 273hr, can be stored. Additionally, 576 bytes of SRAM store application-specific information. A mission to collect data can be programmed to begin immediately, after a user-defined delay, or after a temperature alarm. Access to the memory and control functions can be password protected. The DS1922E is configured and communicates with a host-computing device through the serial 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS1922E is factory lasered with a guaranteed unique 64-bit registration number that allows for absolute traceability. The durable stainless-steel package is highly resistant to environmental hazards such as dirt, moisture, and shock.

While all iButton data loggers are calibrated/validated against NIST traceable reference devices, Maxim offers a web application to generate validation certificates for the DS1922L/T data loggers. Input is an iButton registration number (or list of numbers) and the output is a validation certificate in PDF format.

Właściwości:

• Automatically Wakes Up, Measures Temperature, and Stores Values in 8KB of Data-Log Memory in 8- or 16-Bit Format
• Digital Thermometer Measures Temperature with 8-Bit (0.5°C) or 11-Bit (0.0625°C) Resolution
• Temperature Accuracy: ±1.5°C from +110°C to +140°C, ±7°C typical from +15°C to +110°C
• Water Resistant or Waterproof if Placed Inside DS9107 iButton Capsule (Exceeds Water Resistant 3 ATM Requirements)
• Sampling Rate from 1s Up to 273hr
• Programmable High and Low Trip Points for Temperature Alarms
• Programmable Recording Start Delay After Elapsed Time or Upon a Temperature Alarm Trip Point
• Quick Access to Alarmed Devices Through 1-Wire Conditional Search Function
• 576 Bytes of General-Purpose Memory
• Two-Level Password Protection of All Memory and Configuration Registers
• Communicates to Host with a Single Digital Signal Up to 15.4kbps at Standard Speed or Up to 125kbps in Overdrive Mode Using 1-Wire Protocol
• Operating Temperature Range: +15°C to +140°C

Dokumentacja rejestratora DS1922E (w j. angielskim)

Szczegółowe informacje na stronie producenta >>

DS1922L-F5 (wysoka pojemność, pomiar od -40°C do +85°C)
DS1922T-F5 (wysoka pojemność, pomiar od 0°C do +125°C)

Opis

The DS1922L/T temperature logger iButtons® are rugged, self-sufficient systems that measure temperature and record the result in a protected memory section. The recording is done at a user-defined rate. A total of 8192 8-bit readings or 4096 16-bit readings taken at equidistant intervals ranging from 1s to 273hrs can be stored. In addition to this, there are 512 bytes of SRAM for storing application-specific information and 64 bytes for calibration data. A mission to collect data can be programmed to begin immediately, or after a user-defined delay or after a temperature alarm. Access to the memory and control functions can be password protected. The DS1922L/T is configured and communicates with a host computing device through the serial 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS1922L/T is factory-lasered with a guaranteed unique 64-bit registration number that allows for absolute traceability. The durable stainless-steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1922L/T to be mounted on almost any object, including containers, pallets, and bags.

While all iButton data loggers are calibrated/validated against NIST traceable reference devices, Maxim offers a web application to generate validation certificates for the DS1922L/T data loggers. Input is an iButton registration number (or list of numbers) and the output is a validation certificate in PDF format.

Właściwości:

• Automatically Wakes up, Measures Temperature and Stores Values in 8KB of Datalog Memory in 8- or 16-Bit Format
• Digital Thermometer Measures Temperature with 8-Bit (0.5°C) or 11-Bit (0.0625°C) Resolution
• Accuracy of ±0.5°C from -10°C to +65°C (DS1922L), ±0.5°C from +20°C to +75°C (DS1922T) with Software Correction
• Water resistant or waterproof if placed inside DS9107 iButton capsule (Exceeds Water Resistant 3 ATM requirements)
• Sampling Rate from 1s up to 273hrs
• Programmable Recording Start Delay After Elapsed Time or Upon a Temperature Alarm Trip Point
• Programmable High and Low Trip Points for Temperature Alarms
• Quick Access to Alarmed Devices Through 1-Wire Conditional Search Function
• 512 Bytes of General-Purpose Plus 64 Bytes of Calibration Memory
• Two-Level Password Protection of All Memory and Configuration Registers
• Communicates to Host with a Single Digital Signal at up to 15.4kbps at Standard Speed or up to 125kbps in Overdrive Mode Using 1-Wire Protocol
• Operating Range: DS1922L: -40 to +85°C; DS1922T: 0 to +125°C
• Meets UL 913, 5th Ed., Rev. 1997-02-24; Intrinsically Safe Apparatus, Approved under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations
• Underwriters Laboratories (UL) Recognized

Dokumentacja rejestratorów DS1922L/DS1922T (w j. angielskim)

Szczegółowe informacje na stronie producenta >>

The DS1923 temperature/humidity logger iButton® is a rugged, self-sufficient system that measures temperature and/or humidity and records the result in a protected memory section. The recording is done at a user-defined rate. A total of 8192 8-bit readings or 4096 16-bit readings taken at equidistant intervals ranging from 1s to 273hrs can be stored. In addition to this, there are 512 bytes of SRAM for storing application-specific information and 64 bytes for calibration data. A mission to collect data can be programmed to begin immediately, or after a user defined delay or after a temperature alarm. Access to the memory and control functions can be password protected. The DS1923 is configured and communicates with a host-computing device through the serial 1-WireR protocol, which requires only a single data lead and a ground return. Every DS1923 is factory-lasered with a guaranteed unique 64-bit registration number that allows for absolute traceability. The durable stainless-steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1923 to be mounted on almost any object, including containers, pallets and bags.

Właściwości:

• Digital Hygrometer Measures Humidity with 8-Bit (0.6%RH) or 12-Bit (0.04%RH) Resolution
• Operating Range: -20 to +85°C; 0 to 100%RH
• Automatically Wakes Up, Measures Temperature and/or Humidity and Stores Values in 8kB of Datalog Memory in 8- or 16-Bit Format
• Digital Thermometer Measures Temperature with 8-Bit (0.5°C) or 11-Bit (0.0625°C) Resolution
• Temperature Accuracy Better than ±0.5°C from -10°C to +65°C with Software Correction
• Built-in Humidity Sensor for Simultaneous Temperature and Humidity Logging
• Capacitive Polymer Humidity-Sensing Element
• Hydrophobic Filter Protects Sensor Against Dust, Dirt, Water, and Contaminants
• Sampling Rate from 1s up to 273hrs
• Programmable Recording Start Delay After Elapsed Time or Upon a Temperature Alarm Trip Point
• Programmable High and Low Trip Points for Temperature and Humidity Alarms
• Quick Access to Alarmed Devices Through 1-Wire Conditional Search Function
• 512 Bytes of General-Purpose Memory Plus 64 Bytes of Calibration Memory
• Two-Level Password Protection of All Memory and Configuration Registers
• Communicates to Host with a Single Digital Signal at Up to 15.4kbps at Standard Speed or Up to 125kbps in Overdrive Mode Using 1-Wire Protocol
• Individually Calibrated in a NIST-Traceable Chamber
• Calibration Coefficients for Temperature and Humidity Factory Programmed into Nonvolatile (NV) Memory
• Meets UL 913, 5th Ed., Rev. 1997-02-24; Intrinsically Safe Apparatus, Approved under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations
• Underwriters Laboratories (UL) Recognized

Zastosowanie:

• Environmental Studies/Monitoring
• Temperature and Humidity Logging in Food Preparation and Processing
• Transportation of Temperature- and Humidity-Sensitive Goods, Industrial Production
• Warehouse Monitoring

Dokumentacja rejestratorów DS1923-F5 (w j. angielskim)

Szczegółowe informacje na stronie producenta >>

Nota aplikacyjna: AN3809, Exporting DS192x Logger Data from the OneWireViewer into Excel (w j. angielskim)

Broszura informacyjna (w. j. angielskim)

Oprogramowanie, sterowniki, dodatkowe informacje
